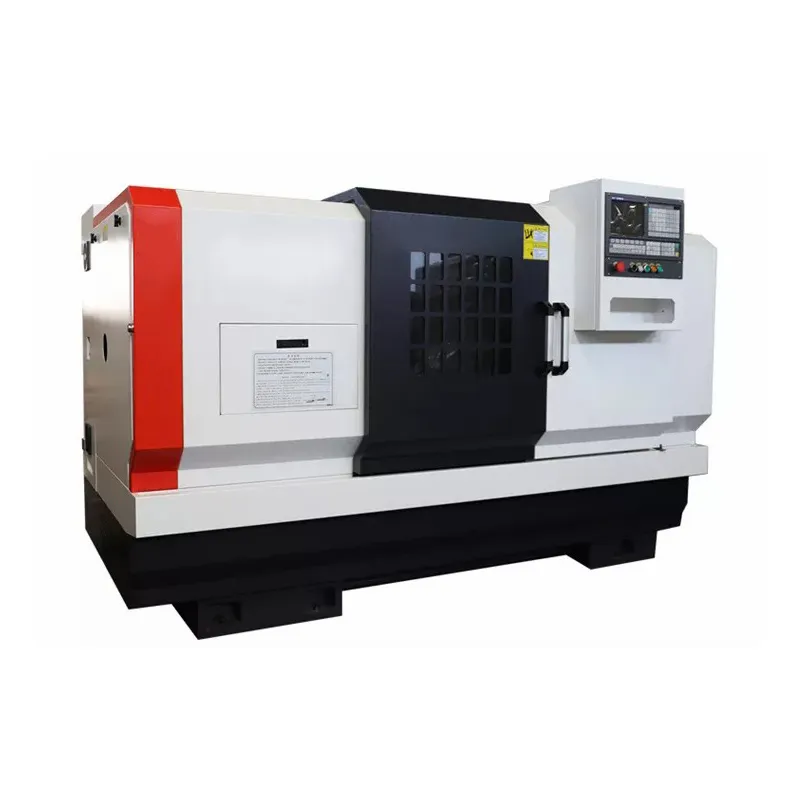

Modèl CK6140/ CK6150/ CK6160/ CK6163/ CK6180/ CK61100/ CK61125 plat kabann CNC tour fèt an fè-wo fòs jete, te ajoute ak materyèl espesyal nan kwiv ak chromium, ki efektivman amelyore rezistans nan mete ak estabilite nan zouti nan machin.
Paramèt spesifikasyon
|
Spesifikasyon |
Inite |
CK6140 |
CK6150 |
CK6160 |
|
Balanse sou kabann lan |
mm |
400 |
500 |
600 |
|
Balanse sou glise kwa |
mm |
220 |
250 |
395 |
|
Max. vire dyamèt |
mm |
400 |
500 |
600 |
|
Max. longè pyès travay la |
mm |
550/750 |
1000/1500/2000 |
1000/1500/2000 |
|
Max. longè vire |
mm |
420/620 (chuck) |
850/1350/1850 |
850/1350/1850 |
|
Nen koton |
A2-6/A2-8 |
A2-8/A2-11 |
A2-8/A2-11 |
|
|
Dyamèt koton twou |
mm |
48/82 |
82/130 |
82/130 |
|
Conique nan twou filet |
mm |
Collet / Metric 90 |
Metrik 90/ Metrik 140 |
Metrik 90/ Metrik 140 |
|
Ranje vitès spindle |
r/min |
150-2500/150-1800 |
150-1800/150-800 |
150-1800/150-800 |
|
Mòd chanjman spindle |
Stepless |
Stepless |
Stepless |
|
|
Motè koton |
kw |
5.5 |
7.5 |
7.5 |
|
Kalite Chuck |
Collet/ mandrin manyèl |
Manyèl mandrin |
Manyèl mandrin |
|
|
Gwosè Chuck |
Pous |
8 |
10/15 |
10/15 |
|
Traverse rapid X/Z |
m/min |
X:6 Z:8 |
X:6 Z:8 |
X:6 Z:8 |
|
Vwayaj aks X |
mm |
280 |
280 |
320 |
|
Z aks vwayaj |
mm |
550/750 |
1000/1500/2000 |
1000/1500/2000 |
|
Kalite fason gid |
Difisil tren |
Difisil tren |
Difisil tren |
|
|
Kapasite tourèl |
4 |
4 |
4 |
|
|
Dyamèt manch manch tailstock |
mm |
60 |
75 |
75 |
|
Quill traverse |
mm |
100 |
150 |
150 |
|
Quill cône |
MT4 |
MT5 |
MT5 |
|
|
Dimansyon machin |
mm |
2000/2200*1600*1700 |
2650/3250/3750*1700*1820 |
2650/3250/3750*1700*1820 |
|
Pwa nèt |
kg |
1900/2200 |
2700/3100/3300 |
2800/3200/3400 |
|
Atik |
Inite |
CK6163 |
CK6180 |
CK61100 |
CK61125 |
|
Max. balanse sou dyamèt kabann lan |
mm |
Φ630 |
Φ800 |
Φ1000 |
Φ1250 |
|
Max. balanse sou dyamèt glise |
mm |
Φ350 |
Φ480 |
Φ620 |
Φ870 |
|
Max. longè pyès travay la |
mm |
1000/1500/2000/3000 |
1500/2000/3000/5000 |
||
|
Max. longè vire |
mm |
850/1350/1850/2850 |
1350/1850/2850/4850 |
||
|
Distans ant sant file koton pou gide |
mm |
315 |
400 |
500 |
625 |
|
Distans ant sant file koton ak tè |
mm |
1145 |
1130 |
1150 |
1275 |
|
Lajè gid kabann |
mm |
550 |
600 |
755 |
755 |
|
Spindle nan dyamèt twou |
mm |
104 |
104 |
130 |
130 |
|
Nen koton |
C11/A211 |
C11/A211 |
A2-15 |
A2-15 |
|
|
Ranje vitès spindle |
r/min |
30-90; 70-200; 130-380; 350-1000 |
30-90; 70-200; 130-380; 350-1000 |
10-32; 30-60; 50-120; 110-300 |
10-32; 30-60; 50-120; 110-300 |
|
Etap vitès koton |
4 angrenaj, stepless |
||||
|
Chanjman angrenaj |
Manyèl/oto |
Manyèl/oto |
Manyèl |
Manyèl |
|
|
Pwensipal servo motè |
kw |
11kw |
11kw |
22kw |
22kw |
|
Dyamèt manch manch tailstock |
mm |
φ100 |
φ100 |
φ160 |
φ160 |
|
Vwayaj manch tailstock |
mm |
250 |
250 |
300 |
300 |
|
Tailstock manch twou cône |
Morse 5 |
Morse 6 |
Morse 6 |
Morse 6 |
|
|
Pòs zouti elektrik |
kalite |
Vètikal kat estasyon |
Vètikal kat estasyon |
Vètikal kat estasyon |
Vètikal kat estasyon |
|
tan pou chanje zouti |
3.6S |
3.6S |
3.6S |
3.6S |
|
|
gwosè |
250*250 |
250*250 |
300*300 |
300*300 |
|
Karakteristik pwodwi
Sistèm kontwòl nimerik adopte Siemens, Fanuc, GSK sistèm, domestik pi popilè boul vis ak wo-presizyon vis portant.
Adopte gwo presizyon gwoup kote yo pote file koton ak asanblaj egzak ak tès balans dinamik asire gwo presizyon, bri ki ba ak frigidité fò.
Se aparèy lubrification otomatik fòse yo itilize pou lubrification quantitative pwen fiks nan vis ak tren gid nan chak pwen wilaj. Lè gen yon eta nòmal oswa lwil oliv ensifizan, siyal avètisman yo pral otomatikman pwodwi. Domestik manyèl 3 machwè pwòp tèt ou santre mandrin se estanda.
