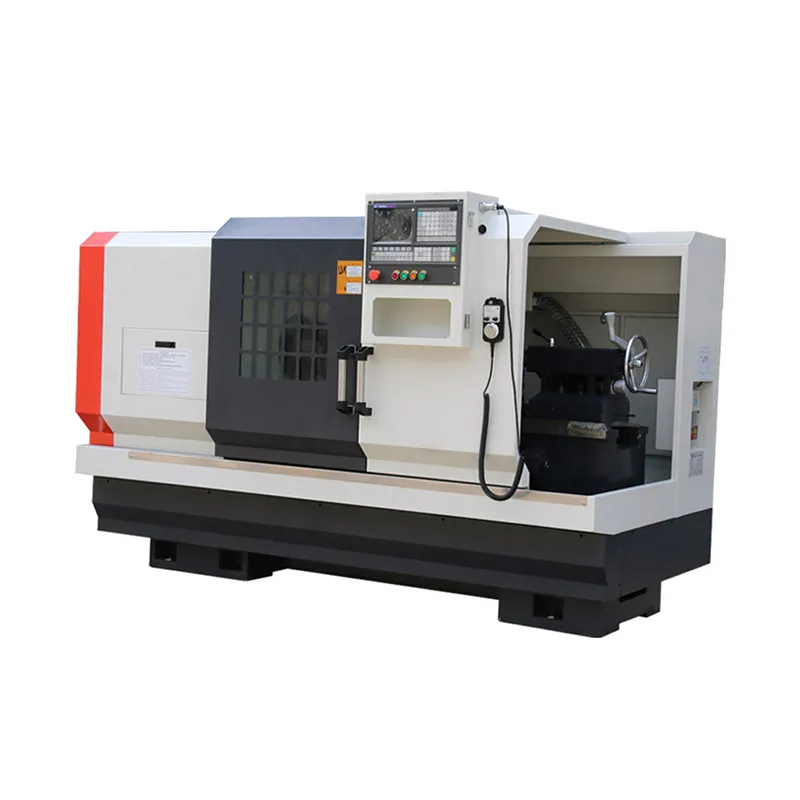

Modèl CK6140/ CK6150/ CK6160/ CK6163/ CK6180/ CK61100/ CK61125 plat kabann CNC tour fèt an fè-wo fòs jete, te ajoute ak materyèl espesyal nan kwiv ak chromium, ki efektivman amelyore rezistans nan mete ak estabilite nan zouti nan machin.

Paramèt spesifikasyon

Spesifikasyon	Inite	CK6140	CK6150	CK6160
Balanse sou kabann lan	mm	400	500	600
Balanse sou glise kwa	mm	220	250	395
Max. vire dyamèt	mm	400	500	600
Max. longè pyès travay la	mm	550/750	1000/1500/2000	1000/1500/2000
Max. longè vire	mm	420/620 (chuck)	850/1350/1850	850/1350/1850
Nen koton		A2-6/A2-8	A2-8/A2-11	A2-8/A2-11
Dyamèt koton twou	mm	48/82	82/130	82/130
Conique nan twou filet	mm	Collet / Metric 90	Metrik 90/ Metrik 140	Metrik 90/ Metrik 140
Ranje vitès spindle	r/min	150-2500/150-1800	150-1800/150-800	150-1800/150-800
Mòd chanjman spindle		Stepless	Stepless	Stepless
Motè koton	kw	5.5	7.5	7.5
Kalite Chuck		Collet/ mandrin manyèl	Manyèl mandrin	Manyèl mandrin
Gwosè Chuck	Pous	8	10/15	10/15
Traverse rapid X/Z	m/min	X:6 Z:8	X:6 Z:8	X:6 Z:8
Vwayaj aks X	mm	280	280	320
Z aks vwayaj	mm	550/750	1000/1500/2000	1000/1500/2000
Kalite fason gid		Difisil tren	Difisil tren	Difisil tren
Kapasite tourèl		4	4	4
Dyamèt manch manch tailstock	mm	60	75	75
Quill traverse	mm	100	150	150
Quill cône		MT4	MT5	MT5
Dimansyon machin	mm	2000/220016001700	2650/3250/375017001820	2650/3250/375017001820
Pwa nèt	kg	1900/2200	2700/3100/3300	2800/3200/3400

Atik	Inite	CK6163	CK6180	CK61100	CK61125
Max. balanse sou dyamèt kabann lan	mm	Φ630	Φ800	Φ1000	Φ1250
Max. balanse sou dyamèt glise	mm	Φ350	Φ480	Φ620	Φ870
Max. longè pyès travay la	mm	1000/1500/2000/3000	1500/2000/3000/5000
Max. longè vire	mm	850/1350/1850/2850	1350/1850/2850/4850
Distans ant sant file koton pou gide	mm	315	400	500	625
Distans ant sant file koton ak tè	mm	1145	1130	1150	1275
Lajè gid kabann	mm	550	600	755	755
Spindle nan dyamèt twou	mm	104	104	130	130
Nen koton		C11/A211	C11/A211	A2-15	A2-15
Ranje vitès spindle	r/min	30-90; 70-200; 130-380; 350-1000	30-90; 70-200; 130-380; 350-1000	10-32; 30-60; 50-120; 110-300	10-32; 30-60; 50-120; 110-300
Etap vitès koton		4 angrenaj, stepless
Chanjman angrenaj		Manyèl/oto	Manyèl/oto	Manyèl	Manyèl
Pwensipal servo motè	kw	11kw	11kw	22kw	22kw
Vitès rapid aks X	m/min	4	4	4	4
Vitès rapid aks Z	m/min	8	8	6	6
X aks manje min. anviwònman inite		0.001mm	0.001mm	0.001mm	0.001mm
Z aks manje min. anviwònman inite		0.001mm	0.001mm	0.001mm	0.001mm
Dyamèt manch manch tailstock	mm	φ100	φ100	φ160	φ160
Vwayaj manch tailstock	mm	250	250	300	300
Tailstock manch twou cône		Morse 5	Morse 6	Morse 6	Morse 6
Pòs zouti elektrik	kalite	Vètikal kat estasyon	Vètikal kat estasyon	Vètikal kat estasyon	Vètikal kat estasyon
	tan pou chanje zouti	3.6S	3.6S	3.6S	3.6S
	gwosè	250*250	250*250	300*300	300*300

Karakteristik pwodwi

Machin nan te kapab trete diferan twou enteryè, sifas sikilè konik ak fil vis pa sistèm kontwòl nimerik, espesyalman apwopriye pou arbr a gwosè ti ak mwayen ak moso plak soti nan pwosesis ki graj fini pwosesis nan pakèt. Li gen avantaj tankou pi wo automatisation, tou senpleman pwogramasyon ak pi wo presizyon.

Li adopte prensip k ap travay nan transmisyon angrenaj vè k'ap manje kadav, meshing nan anwo ak pi ba disk dantle, ak vis blocage. Li gen avantaj ki genyen nan Indexing rapid, segondè presizyon pwezante ak gwo koupl tanjansyèl. Transmisyon ak Indexing nan lèt la adopte eleman Hall la, ki gen yon lavi sèvis long.
